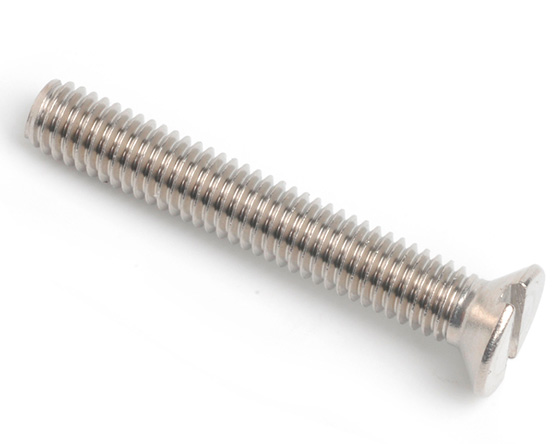

6-32 UNC X 3/8 SLOT COUNTERSUNK MACHINE SCREW ASME B18.6.3 A4 STAINLESS STEEL

Name: 6-32 UNC X 3/8 SLOT COUNTERSUNK MACHINE SCREW ASME B18.6.3 A4 STAINLESS STEEL
SKU: U9636320375A4
Price: 10.89 GBP
Availability: InStock

£10.89 (exc VAT) per 100

6-32 X 3/8 SLOT CSK MACHINE SCREW ANSI B18.6.3 A4 ST/ST

Part No. U9636320375A4

£10.89 (exc VAT) per 100

Quantity Breaks	Price per 100
100 +	£10.89
200 +	£10.35
400 +	£9.83
1000 +	£9.34
2000 +	£8.76

This product must be ordered in multiples of 100, quantities will be rounded up as you add them.

SHOP FOR MORE SLOT COUNTERSUNK MACHINE SCREWS

Further Information

Thread	T.P.I UNC	T.P.I UNF	a	h	j (max)	t (max)	L
4	40	48	0.212-0.191	0.067	0.039	0.030	3/16
6	32	40	0.262-0.238	0.083	0.048	0.038	3/16
8	32	36	0.312-0.285	0.100	0.054	0.045	1/4
10	24	32	0.362-0.333	0.116	0.060	0.053	5/16
1/4	20	28	0.477-0.442	0.153	0.075	0.070	7/16
5/16	18	24	0.597-0.556	0.191	0.084	0.088	1/2
3/8	16	24	0.717-0.670	0.230	0.094	0.106	9/16
1/2	13	20	0.815-0.765	0.223	0.106	0.103	3/4
5/8	11	18	1.050-0.990	0.298	0.133	0.137	*

* Heads will be undercut on lengths less than L
