Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

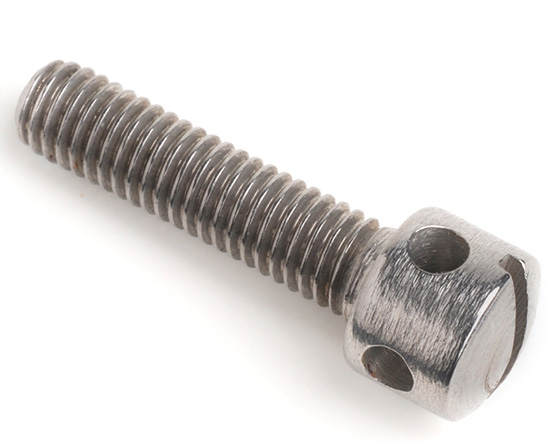

M6 X 10 SLOTTED CAPSTAN SCREW DIN 404 A1 STAINLESS STEEL
£90.05 (exc VAT) per 100
Part No. A4040610
£90.05 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £90.05 |
| 100 + | £85.55 |
| 200 + | £81.27 |
| 500 + | £77.22 |
| 1000 + | £72.45 |
Further Information
| Diameter (d) | Pitch | dk | dh (max) | k | n (nom) | t (min) | w (nom) | f |
|---|---|---|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.38 | 1.50 | 4.38-3.62 | 0.80 | 1.00 | 1.50 | 0.50 |
| M4 | 0.70 | 7.00-6.85 | 2.00 | 5.38-4.62 | 1.00 | 1.40 | 2.00 | 0.60 |
| M5 | 0.80 | 8.50-8.35 | 2.50 | 6.95-6.05 | 1.20 | 1.70 | 2.50 | 0.70 |
| M6 | 1.00 | 10.00-9.85 | 3.00 | 8.45-7.55 | 1.60 | 2.20 | 3.00 | 0.90 |
