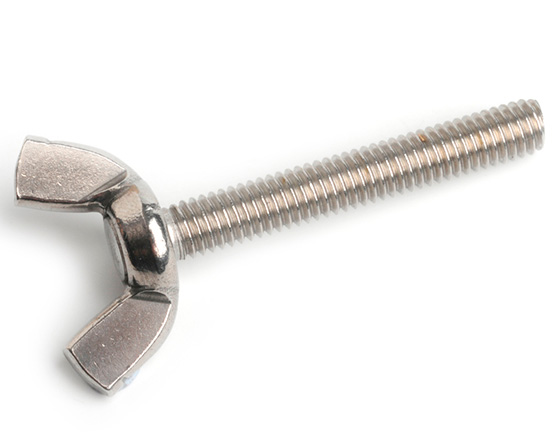

M3 X 20 WING SCREW DIN 316 AMERICAN FORM A2 STAINLESS STEEL
£31.47 (exc VAT) per 100
Part No. A3160320
£31.47 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £31.47 |
| 200 + | £29.90 |
| 400 + | £28.40 |
| 1000 + | £26.99 |
| 2000 + | £25.32 |
This product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | e (max) | m | h | d2 |
|---|---|---|---|---|---|
| M3 | 0.50 | 17.6 | 2.9 | 8.6 | 8.0 |
| M4 | 0.70 | 21.0 | 4.6-3.2 | 11-9.0 | 9.0-7.0 |
| M5 | 0.80 | 26.5 | 6.0-4.0 | 13-11 | 12-9.0 |
| M6 | 1.00 | 32.0 | 7.0-5.0 | 16-14 | 14-11 |
| M8 | 1.25 | 38.0 | 8.5-6.5 | 19-17 | 16-13 |
| M10 | 1.50 | 50.0 | 10-8.0 | 24-22 | 21-18 |
| M12 | 1.75 | 66.0 | 13-10 | 32-29 | 24-21 |
