Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

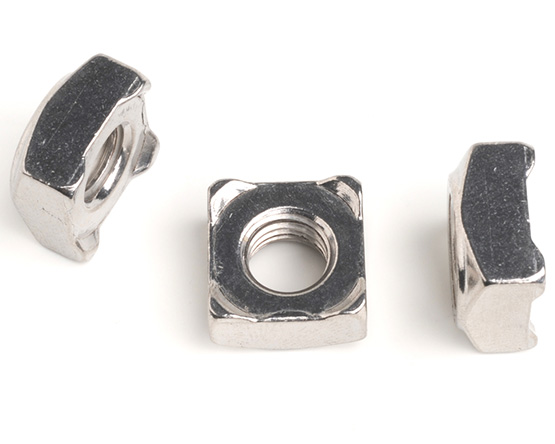

M4 SQUARE WELD NUT DIN 928 A4 STAINLESS STEEL
£11.58 (exc VAT) per 100
Part No. A92804A4
£11.58 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £11.58 |
| 1000 + | £11.00 |
| 2000 + | £10.45 |
| 5000 + | £9.93 |
| 10000 + | £9.32 |
Further Information
| Diameter (d) | Pitch | m (h14) | s (h14) | d4 (min) | h1 | h2 |
|---|---|---|---|---|---|---|
| M4 | 0.70 | 3.5 | 7.0 | 6.4 | 0.6 | 1.30-0.40 |
| M5 | 0.80 | 4.2 | 9.0 | 8.2 | 0.8 | 1.50-0.60 |
| M6 | 1.00 | 5.0 | 10.0 | 9.1 | 0.8 | 1.80-0.70 |
| M8 | 1.25 | 6.5 | 14.0 | 12.8 | 1.0 | 2.00-1.10 |
| M10 | 1.50 | 8.0 | 17.0 | 15.6 | 1.2 | 2.2-1.25 |
| M12 | 1.75 | 9.5 | 19.0 | 17.4 | 1.4 | 3.00-1.75 |
