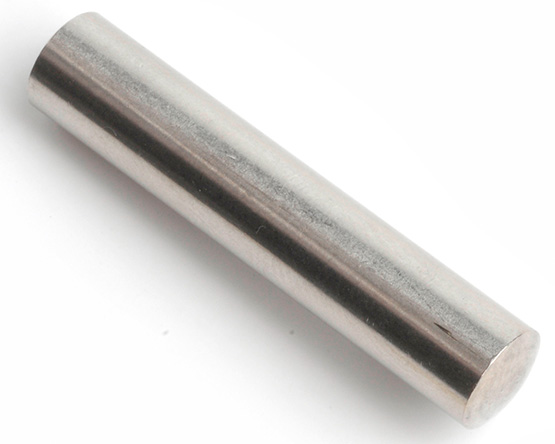

1/4 X 1.1/4 DOWEL PIN ASME B18.8.2 A4 STAINLESS STEEL
£184.93 (exc VAT) per 100
Part No. I7141250A4
£184.93 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 20 + | £184.93 |
| 50 + | £175.68 |
| 100 + | £166.90 |
| 250 + | £158.58 |
| 500 + | £148.78 |
Further Information
| Diameter (d) | a | c | Rec.Hole Size |
|---|---|---|---|
| 1/16 (0.0625) | 0.0628-0.0626 | 0.025-0.005 | 0.0625-0.0620 |
| 3/32 (0.0938) | 0.0941-0.0939 | 0.025-0.005 | 0.0937-0.0932 |
| 1/8 (0.125) | 0.1253-0.1251 | 0.025-0.005 | 0.1250-0.1245 |
| 3/16 (0.1875) | 0.1878-0.1876 | 0.025-0.005 | 0.1875-0.1870 |
| 1/4 (0.250) | 0.2503-0.2501 | 0.025-0.005 | 0.2500-0.2495 |
| 5/16 (0.3125) | 0.3128-0.3126 | 0.040-0.020 | 0.3125-0.3120 |
| 3/8 (0.375) | 0.3753-0.3751 | 0.040-0.020 | 0.3750-0.3745 |
