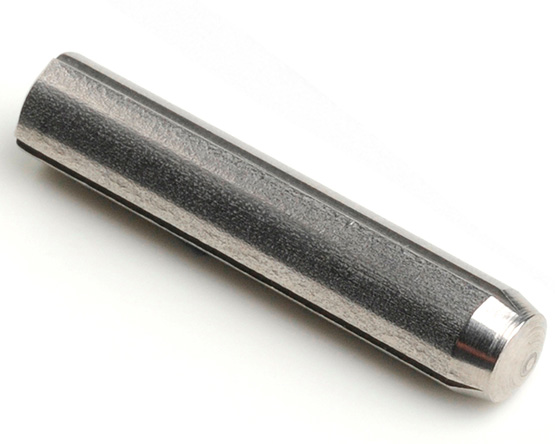

2.5 X 8 Grooved Pin Full Length Parallel (GP3) DIN 1473 A1 Stainless Steel
Part No. A147302508
£31.49 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £31.49 |
| 1000 + | £29.92 |
| 2000 + | £28.42 |
| 5000 + | £27.00 |
| 10000 + | £25.33 |
A minimum order quantity of 500 applies to this productThis product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Diameter (d1) | d2 | a | c2 |
|---|---|---|---|
| 1.5 | 1.65-1.60 | 0.20 | 0.6 |
| 2.0 | 2.20-2.15 | 0.25 | 0.8 |
| 2.5 | 2.70-2.60 | 0.30 | 1.0 |
| 3.0 | 3.25-3.15 | 0.40 | 1.2 |
| 4.0 | 4.30-4.20 | 0.50 | 1.4 |
| 5.0 | 5.30-5.20 | 0.63 | 1.7 |
| 6.0 | 6.35-6.25 | 0.80 | 2.1 |
| 8.0 | 8.35-8.25 | 1.00 | 2.6 |
| 10.0 | 10.40-10.30 | 1.20 | 3.0 |
