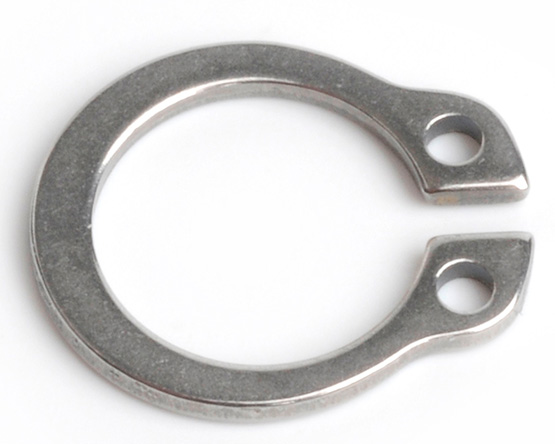

10mm External Circlip For Shafts DIN 471 1.4532 Stainless Steel

Part No. A47110A4

£361.76 (exc VAT) per 100

Quantity Breaks	Price per 100
100 +	£361.76
200 +	£343.67
400 +	£326.49
1000 +	£310.21
2000 +	£291.04

A minimum order quantity of 100 applies to this productThis product must be ordered in multiples of 100, quantities will be rounded up as you add them.

SHOP FOR MORE EXTERNAL CIRCLIPS DIN 471

Further Information

Shaft Diameter (d1)	d5 MIN	d3	a (max)	b	d4
5	1	4.7	2.5	1.1	10.3
6	1.2	5.6	2.7	1.3	11.7
7	1.2	6.5	3.1	1.4	13.5
8	1.2	7.4	3.2	1.5	14.7
9	1.2	8.4	3.3	1.7	16.0
10	1.5	9.3	3.3	1.8	17.0
11	1.5	10.2	3.3	1.8	18.0
12	1.7	11.0	3.3	1.8	19.0
13	1.7	11.9	3.4	1.9	20.2
14	1.7	12.9	3.5	2.1	21.4
15	1.7	13.8	3.6	2.2	22.6
16	1.7	14.7	3.7	2.2	23.8
17	1.7	15.7	3.8	2.3	25.0
18	2	16.5	3.9	2.5	26.2
19	2	17.5	3.9	2.5	27.2
20	2	18.5	4.0	2.6	28.4
21	2	19.5	4.1	2.7	29.6
22	2	20.5	4.2	2.8	30.8
23	2	21.4	4.3	2.9	*
24	2	22.2	4.4	3.0	33.2
25	2	23.2	4.4	3.0	34.2
26	2	24.2	4.4	3.1	35.5
27	2	25.1	4.6	3.1	*
28	2	25.9	4.7	3.2	37.9
29	2	26.9	4.8	3.4	39.1
30	2	27.9	5.0	3.5	40.5
32	2.5	29.6	5.2	3.6	43.0
34	2.5	31.5	5.4	3.8	45.4
35	2.5	32.2	5.6	3.9	46.8
36	2.5	33.2	5.6	4.0	47.8
37	2.5	34.2	5.7	4.1	*
38	2.5	35.2	5.8	4.2	50.2
40	2.5	36.5	6	4.4	52.6
