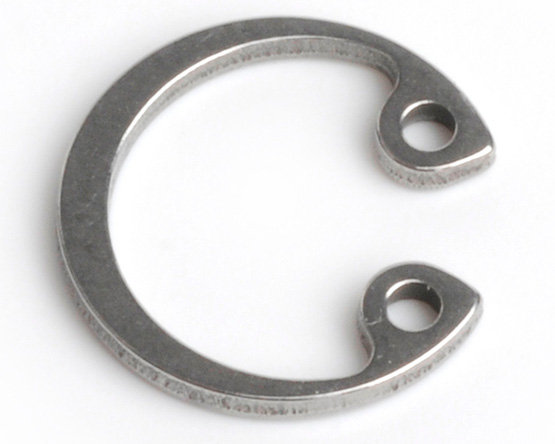

30MM INTERNAL CIRCLIP FOR BORES DIN 472 1.4532 STAINLESS STEEL
£395.93 (exc VAT) per 100
Part No. A47230A4
£395.93 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £395.93 |
| 100 + | £376.13 |
| 200 + | £357.33 |
| 500 + | £339.51 |
| 1000 + | £318.53 |
This product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Bore Diameter (d1) | s | d3 | a (max) | b | d4 |
|---|---|---|---|---|---|
| 9 | 0.80 | 9.80 | 2.5 | 1.3 | 3.7 |
| 10 | 1.00 | 10.8 | 3.2 | 1.4 | 3.3 |
| 11 | 1.00 | 11.8 | 3.3 | 1.5 | 4.1 |
| 12 | 1.00 | 13.0 | 3.4 | 1.7 | 4.9 |
| 13 | 1.00 | 14.1 | 3.6 | 1.8 | 5.4 |
| 14 | 1.00 | 15.1 | 3.7 | 1.9 | 6.2 |
| 15 | 1.00 | 16.2 | 3.7 | 2.0 | 7.2 |
| 16 | 1.00 | 17.3 | 3.8 | 2.0 | 8.0 |
| 17 | 1.00 | 18.3 | 3.9 | 2.1 | 8.8 |
| 18 | 1.00 | 19.5 | 4.1 | 2.2 | 9.4 |
| 19 | 1.00 | 20.5 | 4.1 | 2.2 | 10.4 |
| 20 | 1.00 | 21.5 | 4.2 | 2.3 | 11.2 |
| 21 | 1.00 | 22.5 | 4.2 | 2.5 | 12.2 |
| 22 | 1.00 | 23.5 | 4.2 | 2.5 | 13.2 |
| 23 | 1.20 | 24.6 | 4.3 | 2.5 | * |
| 24 | 1.20 | 25.9 | 4.4 | 2.6 | 14.8 |
| 25 | 1.20 | 26.9 | 4.5 | 2.7 | 15.5 |
| 26 | 1.20 | 27.9 | 4.7 | 2.8 | 16.1 |
| 27 | 1.20 | 28.9 | 4.7 | 2.8 | * |
| 28 | 1.20 | 30.1 | 4.8 | 2.9 | 17.9 |
| 29 | 1.20 | 31.1 | 4.8 | 3.0 | * |
| 30 | 1.20 | 32.1 | 4.8 | 3.0 | 19.9 |
| 31 | 1.20 | 33.4 | 5.2 | 3.2 | 20.0 |
| 32 | 1.20 | 34.4 | 5.4 | 3.2 | 20.6 |
| 33 | 1.20 | 35.5 | 5.4 | 3.3 | * |
| 34 | 1.50 | 36.5 | 5.4 | 3.3 | 22.6 |
| 35 | 1.50 | 37.8 | 5.4 | 3.4 | 23.6 |
| 36 | 1.50 | 38.8 | 5.4 | 3.5 | 24.6 |
| 37 | 1.50 | 39.8 | 5.5 | 3.6 | 25.4 |
| 38 | 1.50 | 40.8 | 5.5 | 3.7 | 26.4 |
| 39 | 1.50 | 42 | 5.6 | 3.8 | * |
| 40 | 1.75 | 43.5 | 5.8 | 3.9 | 27.8 |
