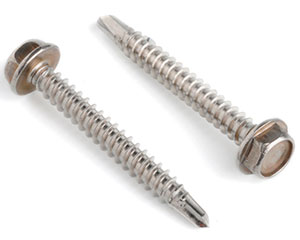

6.3 X 38 HEXAGON HEAD WASHER FACED SELF DRILLING SCREW DIN 7504K A2 STAINLESS STEEL
£21.17 (exc VAT) per 100
Part No. A7504K6338
£21.17 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £21.17 |
| 1000 + | £20.11 |
| 2000 + | £19.11 |
| 5000 + | £18.15 |
| 10000 + | £17.03 |
Further Information
| Metric (d) | dc | k | c (min) | a (max) | dp (max) | s |
|---|---|---|---|---|---|---|
| 3.5 (#6) | 8.30-7.60 | 3.40-3.00 | 0.60 | 2.25 | 2.80 | SW5.5 |
| 3.9 (#7) | 8.30-7.60 | 3.40-3.00 | 0.60 | 2.40 | 3.10 | SW5.5 |
| 4.2 (#8) | 8.80-8.10 | 4.10-3.60 | 0.80 | 3.00 | 3.60 | SW7 |
| 4.8 (#10) | 10.50-9.80 | 4.30-3.80 | 0.90 | 4.40 | 4.10 | SW8 |
| 5.5 (#12) | 11.00-10.00 | 5.40-4.80 | 1.00 | 5.25 | 4.80 | SW8 |
| 6.3 (#14) | 13.50-12.20 | 5.90-5.30 | 1.00 | 6.00 | 5.80 | SW10 |
