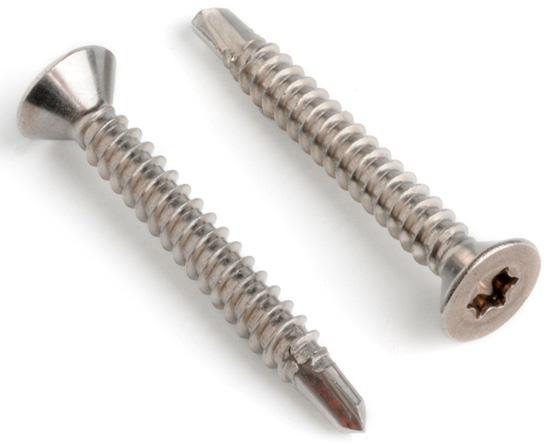

5.5 X 32 TX25 Countersunk Self Drilling Screw DIN 7504O A2 Stainless Steel
Part No. A7504P5532TX
£23.94 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £23.94 |
| 1000 + | £22.74 |
| 2000 + | £21.61 |
| 5000 + | £20.53 |
| 10000 + | £19.26 |
A minimum order quantity of 500 applies to this productThis product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Metric (d) | dk | k (max) | a (max) | dp (max) | Drive |
|---|---|---|---|---|---|
| 2.9 (#4) | 5.50-5.20 | 2.35 | 1.70 | 2.30 | T8 |
| 3.5 (#6) | 7.30-6.90 | 2.35 | 2.25 | 2.80 | T10 |
| 3.9 (#7) | 7.50-7.14 | 2.50 | 2.40 | 3.10 | T15 |
| 4.2 (#8) | 8.40-8.00 | 2.60 | 3.00 | 3.60 | T20 |
| 4.8 (#10) | 9.30-8.90 | 2.80 | 4.40 | 4.10 | T25 |
| 5.5 (#12) | 10.30-9.90 | 3.00 | 5.25 | 4.80 | T25 |
| 6.3 (#14) | 11.30-10.90 | 3.15 | 6.00 | 5.80 | T30 |
