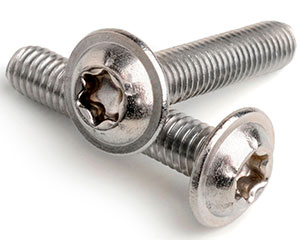

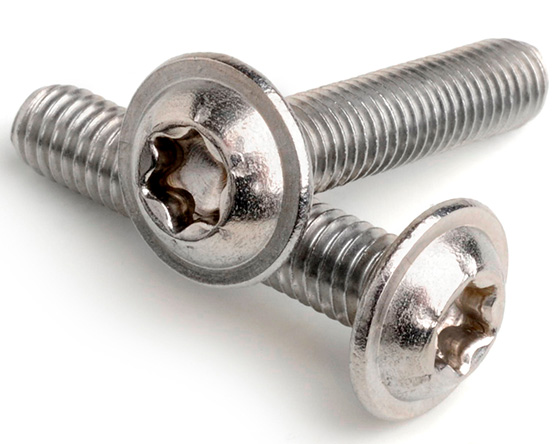

M8 X 20 FLANGED TX40 BUTTON ISO 7380-2 A2 STAINLESS STEEL
£28.71 (exc VAT) per 100
Part No. A73800820FLTX
£28.71 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £28.71 |
| 400 + | £27.27 |
| 800 + | £25.91 |
| 2000 + | £24.62 |
| 4000 + | £23.10 |
This product must be ordered in multiples of 200, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | T-Drive | d2 (max) | k (max) | t (min) | c |
|---|---|---|---|---|---|---|
| M2 | 0.40 | 6 | 4.0 | 1.23 | * | * |
| M2.5 | 0.45 | 8 | 5.5 | 1.43 | * | * |
| M3 | 0.50 | 10 | 7.0 | 1.70 | 1.01 | 0.7 |
| M4 | 0.70 | 20 | 9.4 | 2.20 | 1.42 | 0.8 |
| M5 | 0.80 | 25 | 11.6 | 2.80 | 1.65 | 1.0 |
| M6 | 1.00 | 30 | 13.6 | 3.30 | 2.02 | 1.1 |
| M8 | 1.25 | 40 | 17.8 | 4.40 | 2.80 | 1.5 |
| M10 | 1.50 | 50 | 22.0 | 5.50 | 3.62 | 1.7 |
| M12 | 1.75 | 55 | 25 | 7.00 | 4.16 | 2.4 |
