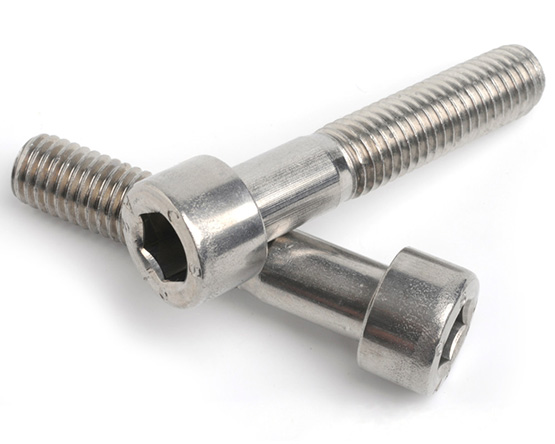

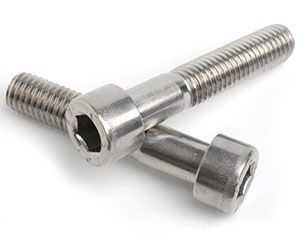

M2.5 X 6 Socket Cap Screw DIN 912 / ISO 4762 Titanium Gr.5 (TI 6Al-4V)
Part No. T91202506GR5
£438.83 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 50 + | £438.83 |
| 100 + | £416.89 |
| 200 + | £396.04 |
| 500 + | £376.30 |
| 1000 + | £353.04 |
A minimum order quantity of 50 applies to this productThis product must be ordered in multiples of 50, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dk | k | s (nom) | t (min) | b (max) |
|---|---|---|---|---|---|---|
| M1.6 | 0.35 | 3.00-2.86 | 1.60-1.46 | 1.5 | 0.7 | 15 |
| M2 | 0.40 | 3.80-3.62 | 2.00-1.86 | 1.5 | 1.0 | 16 |
| M2.5 | 0.45 | 4.50-4.32 | 2.50-2.36 | 2.0 | 1.1 | 17 |
| M3 | 0.50 | 5.50-5.32 | 3.00-2.86 | 2.5 | 1.3 | 18 |
| M4 | 0.70 | 7.00-6.78 | 4.00-3.82 | 3.0 | 2.0 | 20 |
| M5 | 0.80 | 8.50-8.28 | 5.00-4.82 | 4.0 | 2.5 | 22 |
| M6 | 1.00 | 10.00-9.78 | 6.00-5.70 | 5.0 | 3.0 | 24 |
| M8 | 1.25 | 13.00-12.73 | 8.00-7.64 | 6.0 | 4.0 | 28 |
| M10 | 1.50 | 16.00-15.73 | 10.00-9.64 | 8.0 | 5.0 | 32 |
