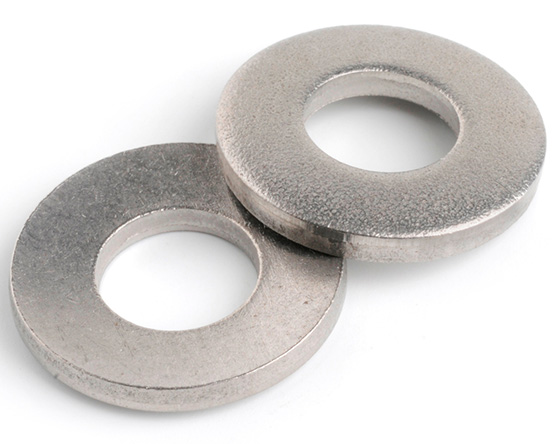

M5 Conical Washer DIN 6796 A2 Stainless Steel
Part No. A679605
£5.46 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £5.46 |
| 1000 + | £5.19 |
| 2000 + | £4.93 |
| 5000 + | £4.68 |
| 10000 + | £4.39 |
A minimum order quantity of 500 applies to this productThis product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 (h14) | d2 (h14) | s | h |
|---|---|---|---|---|
| M3 | 3.2 | 7 | 0.60 | 0.85-0.72 |
| M4 | 4.3 | 9 | 1.00 | 1.30-1.12 |
| M5 | 5.3 | 11 | 1.20 | 1.55-1.35 |
| M6 | 6.4 | 14 | 1.50 | 2.00-1.70 |
| M8 | 8.4 | 18 | 2.00 | 2.60-2.24 |
| M10 | 10.5 | 23 | 2.50 | 3.20-2.60 |
| M12 | 13 | 29 | 3.00 | 3.95-3.43 |
| M14 | 15 | 35 | 3.50 | 4.65-4.04 |
| M16 | 17 | 39 | 4.00 | 5.25-4.58 |
| M18 | 19 | 42 | 4.50 | 5.80-5.08 |
| M20 | 21 | 45 | 5.00 | 6.40-5.60 |
| M22 | 23 | 49 | 5.50 | 7.05-6.15 |
| M24 | 25 | 56 | 6.00 | 7.75-6.77 |
