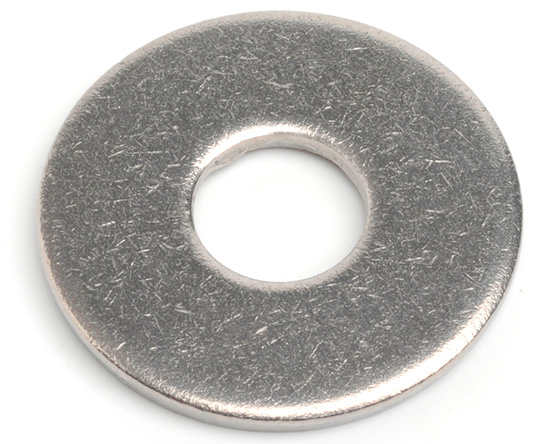

M6 DIN 9021 Flat Washer Duplex 1.4462
Further Information
| Diameter (d) | d1 | d2 | h |
|---|---|---|---|
| M6 | 6.62-6.40 | 18.00-17.57 | 1.80-1.40 |
| M8 | 8.62-8.40 | 24.00-23.48 | 2.20-1.80 |
| M10 | 10.77-10.50 | 30.00-29.48 | 2.70-2.30 |
| M12 | 13.27-13.00 | 37.00-36.38 | 3.30-2.70 |
| M16 | 17.27-17.00 | 50.00-49.38 | 3.30-2.70 |
| M20 | 22.52-22.00 | 60.00-58.10 | 4.60-3.40 |
| M24 | 26.34-26.00 | 72.00-72.10 | 6.00-4.00 |
