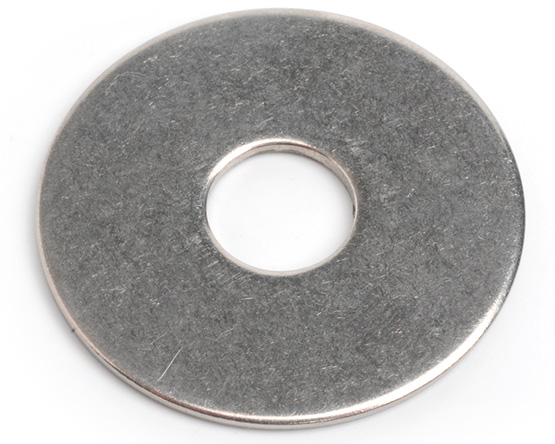

M16 FLAT WASHER FOR BOLT WITH HEAVY DUTY SPRING PIN DIN 7349 A2 STAINLESS STEEL
£42.26 (exc VAT) per 100
Part No. A734916
£42.26 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £42.26 |
| 200 + | £40.15 |
| 400 + | £38.14 |
| 1000 + | £36.24 |
| 2000 + | £34.00 |
This product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 (h15) | d2 (h16) | h (nom) | h | ISO 8752 d (nom) |
|---|---|---|---|---|---|
| M3 | 3.2 | 9 | 1.0 | 1.2-0.8 | 6.0 |
| M4 | 4.3 | 12 | 1.6 | 1.9-1.3 | 8.0 |
| M5 | 5.3 | 15 | 2.0 | 2.3-1.7 | 10 |
| M6 | 6.4 | 17 | 3.0 | 3.6-2.4 | 12 |
| M8 | 8.4 | 21 | 4.0 | 4.6-3.4 | 16 |
| M10 | 10.5 | 25 | 4.0 | 4.6-3.4 | 18 |
| M12 | 13 | 30 | 6.0 | 7.0-5.0 | 21 |
| M14 | 15 | 36 | 6.0 | 7.0-5.0 | 25 |
| M16 | 17 | 40 | 6.0 | 7.0-5.0 | 28 |
| M18 | 19 | 44 | 8.0 | 9.2-6.8 | 32 |
| M20 | 21 | 44 | 8.0 | 9.2-6.8 | 35 |
| M22 | 23 | 50 | 8.0 | 9.2-6.8 | 38 |
| M24 | 25 | 50 | 10.0 | 11.2-8.8 | 40 |
| M27 | 28 | 60 | 10.0 | 11.2-8.8 | 45 |
| M30 | 31 | 68 | 10.0 | 11.2-8.8 | 50 |
