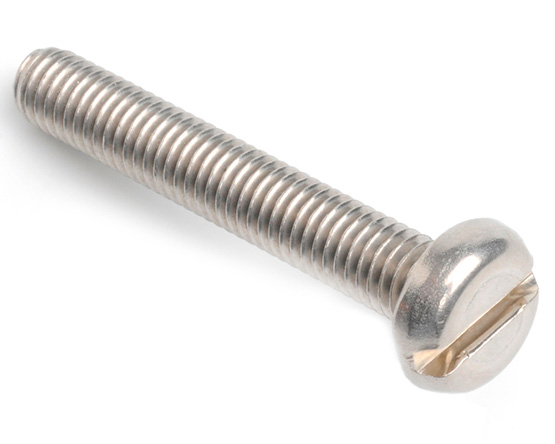

1-64 UNC X 1/8 SLOT PAN MACHINE SCREW ASME B18.6.3 A2 STAINLESS STEEL

Name: 1-64 UNC X 1/8 SLOT PAN MACHINE SCREW ASME B18.6.3 A2 STAINLESS STEEL
SKU: U851640125
Price: 11.53 GBP
Availability: InStock

£11.53 (exc VAT) per 100

Part No. U851640125

£11.53 (exc VAT) per 100

This product must be ordered in multiples of 25, quantities will be rounded up as you add them.

SHOP FOR MORE SLOT PAN MACHINE SCREWS

Thread	T.P.I UNC	T.P.I UNF	a	h	j (max)	t (max)
0	*	80	0.116-0.104	0.039-0.031	0.023	0.022
1	64	72	0.142-0.130	0.046-0.038	0.026	0.027
2	56	64	0.167-0.155	0.053-0.045	0.031	0.031
3	48	56	0.193-0.180	0.060-0.051	0.035	0.036
4	40	48	0.219-0.205	0.068-0.058	0.039	0.040
5	40	44	0.245-0.231	0.075-0.065	0.043	0.045
6	32	40	0.270-0.256	0.082-0.072	0.048	0.050
8	32	36	0.322-0.306	0.096-0.085	0.054	0.058
10	24	32	0.373-0.357	0.110-0.099	0.060	0.068
12	24	28	0.425-0.407	0.125-0.112	0.067	0.077
1/4	20	28	0.492-0.473	0.144-0.130	0.075	0.087
5/16	18	24	0.615-0.594	0.178-0.162	0.084	0.106
3/8	16	24	0.740-0.716	0.212-0.195	0.094	0.124
