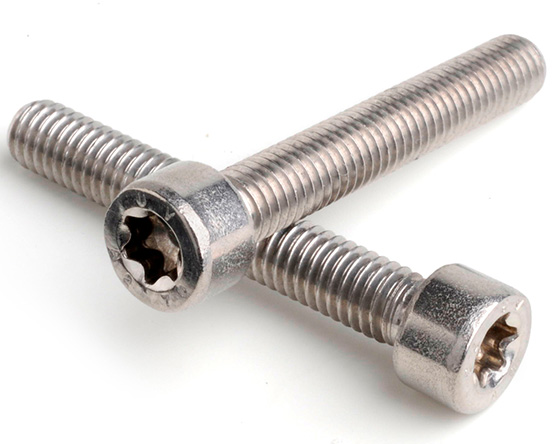

M10 X 70 TX50 CAP SCREW ISO 14579 A2-70 STAINLESS STEEL
£87.26 (exc VAT) per 100
Part No. A1457910070
£87.26 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £87.26 |
| 200 + | £82.90 |
| 400 + | £78.75 |
| 1000 + | £74.83 |
| 2000 + | £70.20 |
Further Information
| Diameter (d) | Pitch | T-Drive | dk | k | t (min) | b (nom) |
|---|---|---|---|---|---|---|
| M2 | 0.40 | 6 | 3.80-3.62 | 2.00-1.86 | 0.71 | 16 |
| M2.5 | 0.45 | 8 | 4.50-4.32 | 2.50-2.36 | 0.91 | 17 |
| M3 | 0.50 | 10 | 5.50-5.32 | 3.00-2.86 | 1.01 | 18 |
| M4 | 0.70 | 20 | 7.00-6.78 | 4.00-3.82 | 1.42 | 20 |
| M5 | 0.80 | 25 | 8.50-8.28 | 5.00-4.82 | 1.65 | 22 |
| M6 | 1.00 | 30 | 10.00-9.78 | 6.00-5.70 | 2.02 | 24 |
| M8 | 1.25 | 45 | 13.00-12.73 | 8.00-7.64 | 2.92 | 28 |
| M10 | 1.50 | 50 | 16.00-15.73 | 10.00-9.64 | 3.62 | 32 |
