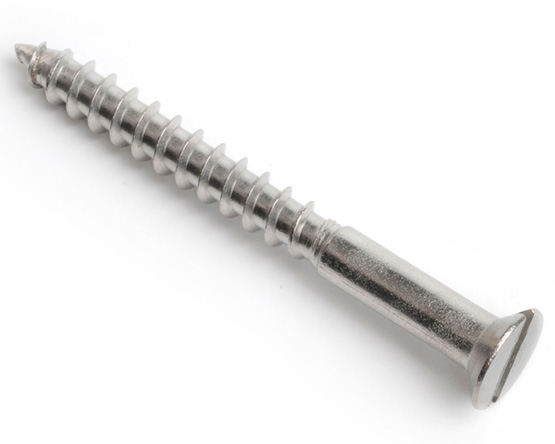

8.0 X 80 SLOT COUNTERSUNK WOODSCREW DIN 97 A2 STAINLESS STEEL
£83.37 (exc VAT) per 100
Part No. A9780080
£83.37 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £83.37 |
| 200 + | £79.20 |
| 400 + | £75.24 |
| 1000 + | £71.49 |
| 2000 + | £67.07 |
Further Information
| Size | dk | k (max) | ds | n (nom) | t (min) | b |
|---|---|---|---|---|---|---|
| 2.5 (#3) | 5.08-4.33 | 1.50 | 2.50-2.10 | 0.60 | 0.50 | 0.6 x L |
| 3.0 (#4) | 5.98-5.23 | 1.65 | 3.00-2.60 | 0.80 | 0.60 | 0.6 x L |
| 3.5 (#6) | 6.95-6.05 | 1.93 | 3.50-3.02 | 0.80 | 0.70 | 0.6 x L |
| 4.0 (#8) | 7.95-7.05 | 2.20 | 4.00-3.52 | 1.00 | 0.80 | 0.6 x L |
| 4.5 (#9) | 8.75-7.85 | 2.35 | 4.50-4.02 | 1.00 | 0.90 | 0.6 x L |
| 5.0 (#10) | 9.65-8.75 | 2.50 | 5.00-4.52 | 1.20 | 1.00 | 0.6 x L |
| 5.5 (#12) | 10.75-9.65 | 2.75 | 5.50-5.02 | 1.20 | 1.10 | 0.6 x L |
| 6.0 (#14) | 11.55-10.45 | 3.00 | 6.00-5.52 | 1.60 | 1.20 | 0.6 x L |
| 8.0 (#16) | 15.05-13.95 | 4.00 | 8.00-7.42 | 2.00 | 1.60 | 0.6 x L |
